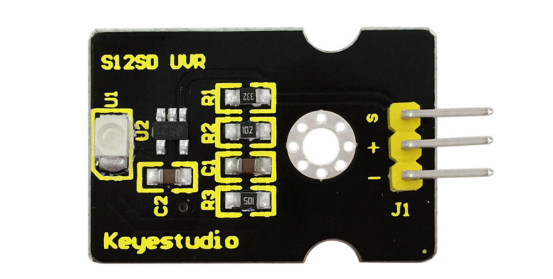

KS0204, Keyestudio GUVA-S12SD 3528 Sunshine ultraviolet radiation sensor

keyestudio GUVA-S12SD ultraviolet sensor is used to detect ultraviolet light. It includes GUVA-S12SD applied to measure ultraviolet index of intelligent wearable device, such as watches, smart phone and outdoor device with UV index detecting.
It can be also used to monitor the intensity of ultraviolet light or used as a UV flame detector when disinfecting things by ultraviolet light.

Parameters

• Supply Voltage: 2.5V～5V
• Output Signal: Analog Signal
• Detecting Range of Spectrum: 240-370nm
• Active Region：0.076mm2
• Responsivity: 0.14A/W
• Dark Current: 1nA
• Light Current: 101~125nA UVA Light,1mW/cm2
