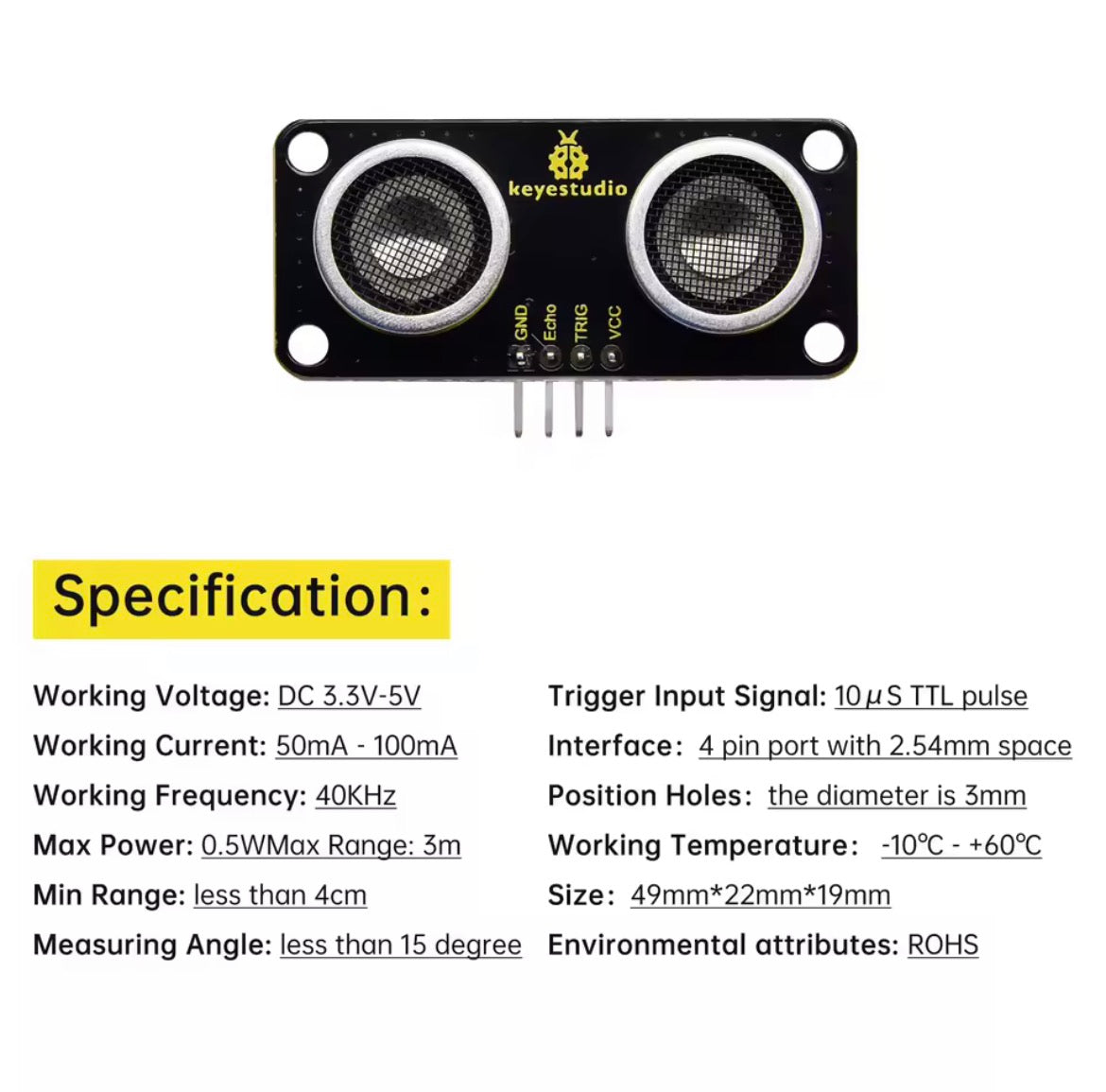

KS0504, Keyestudio SR01 Ultrasonic Sensor Module V3

Pin Header Port:

Working Voltage: DC 3.3V–5V

Working Current: 50mA–100mA

Working Frequency: 40KHz

Max Power: 0.5W

Max Range: 3m

Min Range: less than 4cm

Measuring Angle: less than 15 degree

Trigger Input Signal: 10μS TTL pulse

Interface: 4 pin port with 2.54mm space

Position Holes: the diameter is 3mm

Working Temperature: -10°C – +60°C

Size: 49mm × 22mm × 19mm

Environmental attributes: ROHS
