HDS120 Handheld 2in1 Digital Oscilloscope Multimeter with 1MHz Bandwidth, 2.8" IPS Screen, True RMS, CATIII 1000V

Product Description

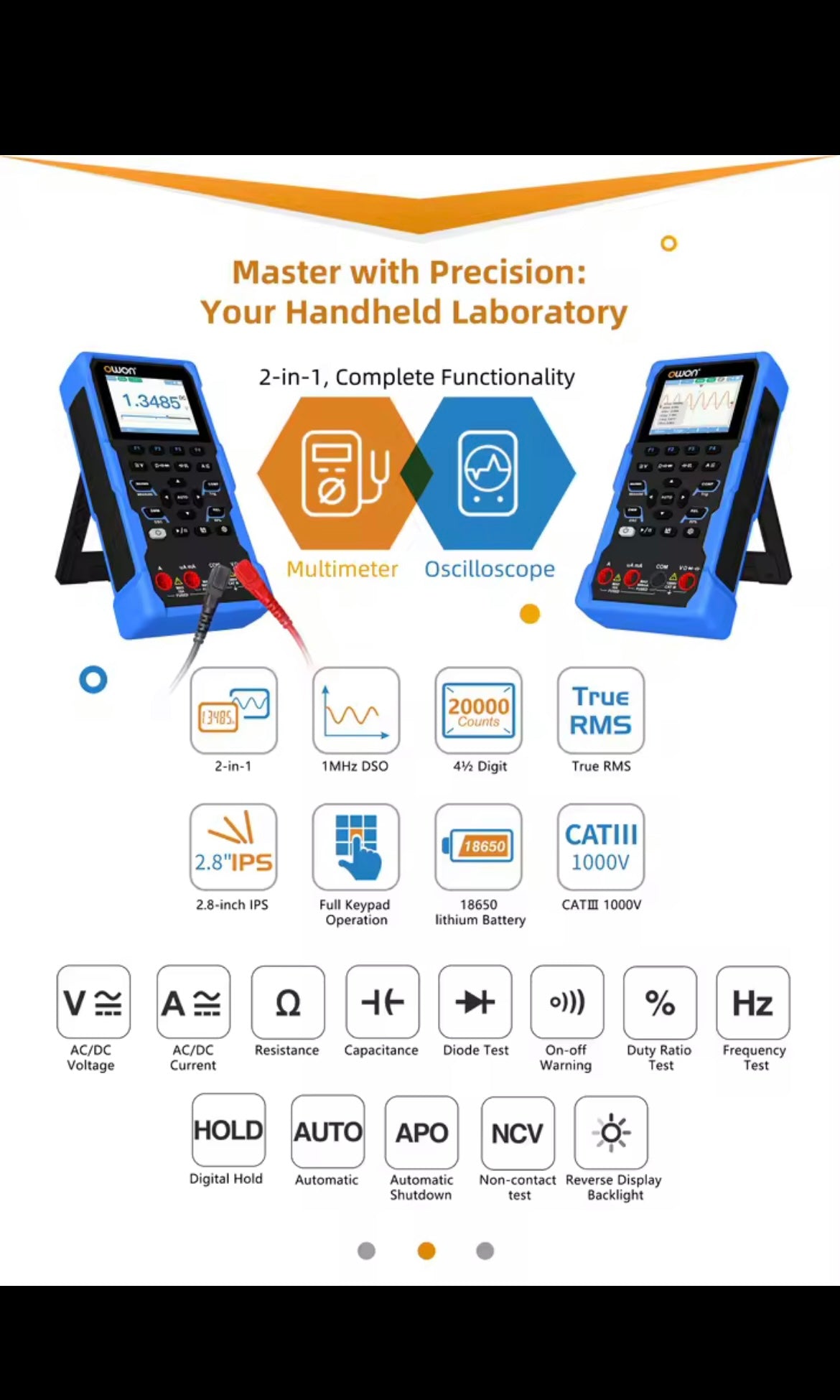

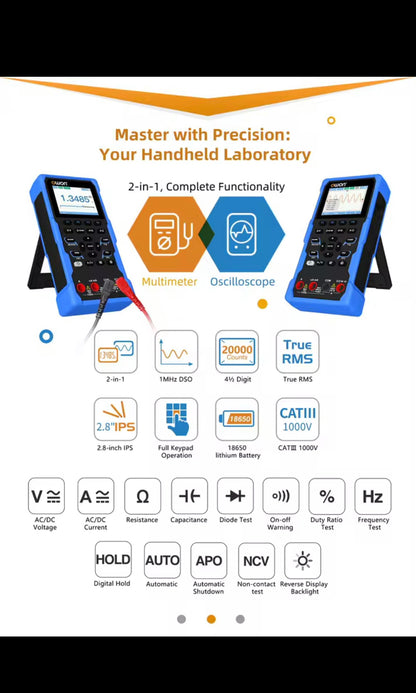

The HDS120 is a versatile 2-in-1 handheld oscilloscope and multimeter designed for professionals and hobbyists who demand precision and portability. Combining 1MHz analog bandwidth oscilloscope functionality with a 20,000-count True RMS multimeter, this device offers comprehensive measurement capabilities in a compact, user-friendly design.

Key Features

Dual Functionality: Integrates a digital oscilloscope (1MHz bandwidth, 5MSa/s sampling rate) and a high-accuracy multimeter for voltage, current, resistance, capacitance, frequency, and duty cycle measurements.

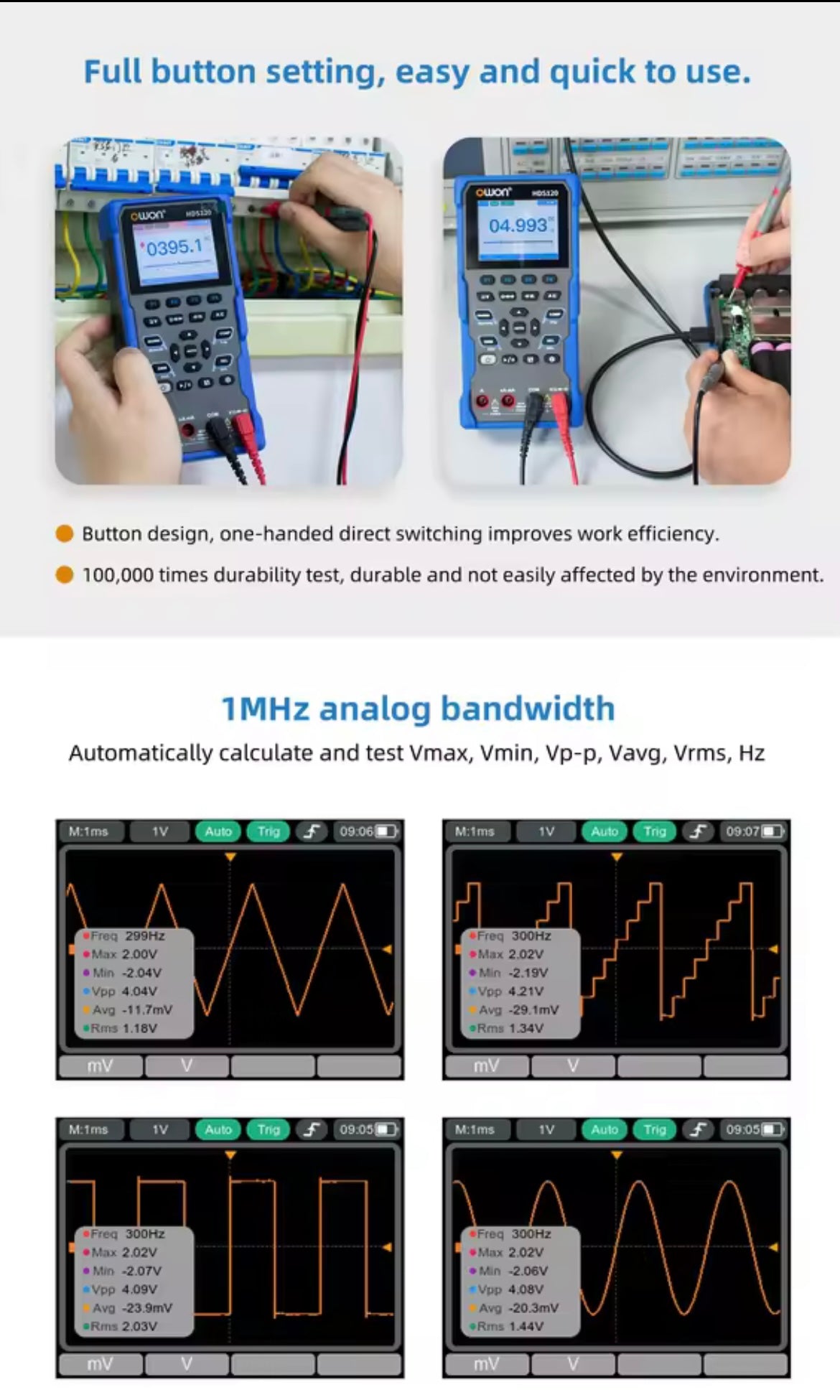

High-Resolution Display: 2.8-inch IPS screen with dual themes for optimal visibility in bright or dark environments, featuring automatic waveform measurements (Vmax, Vmin, Vp-p, Vavg, Vrms, Hz).

Professional Safety: Complies with CATIII 1000V safety standards, with smart probe detection, current range alerts, and input protection to prevent misoperation.

Efficient & Durable: Full-button operation for one-handed use, 18650 lithium battery for extended runtime, and rugged design tested for 100,000+ operations.

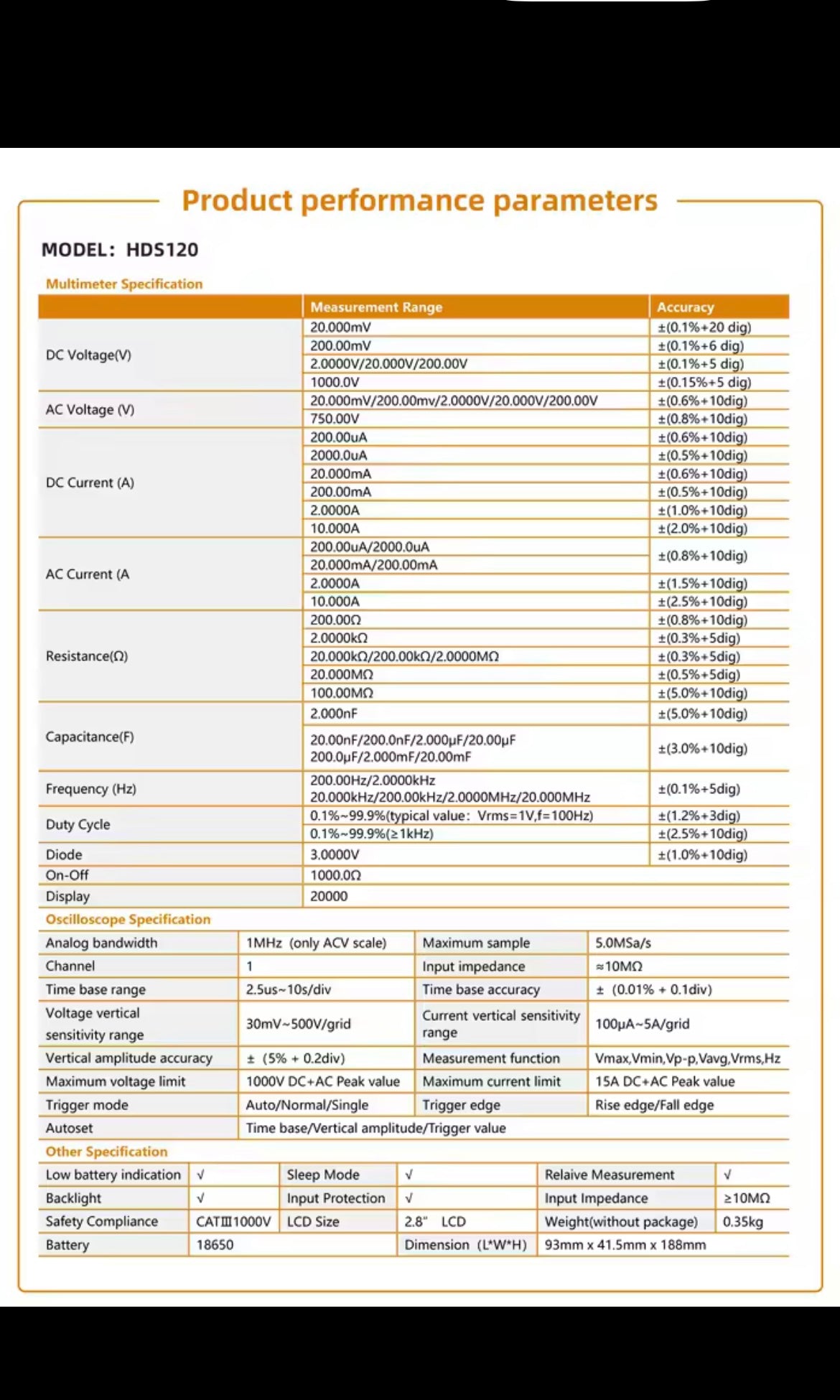

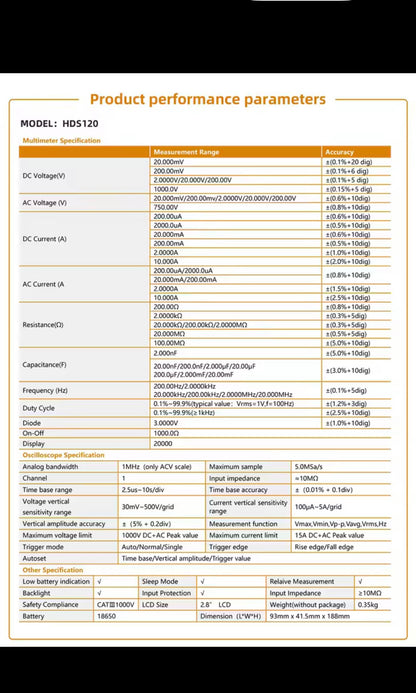

Advanced Measurements

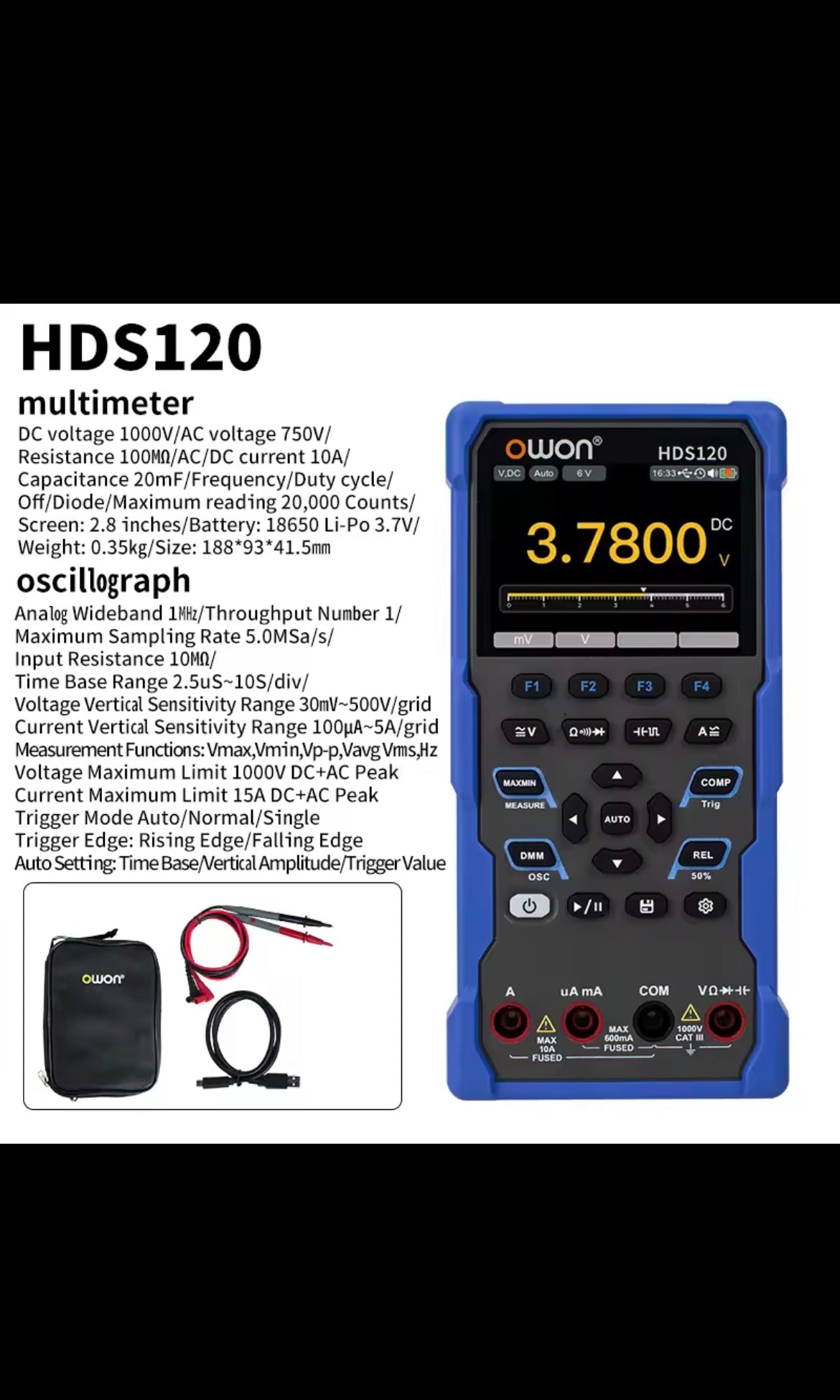

Oscilloscope: 1MHz bandwidth, 10MΩ input impedance, auto-trigger, and time/base adjustments.

Multimeter: True RMS, auto-ranging, and support for AC/DC voltage (up to 1000V), current (up to 10A), capacitance (20mF) and frequency (20MHz).

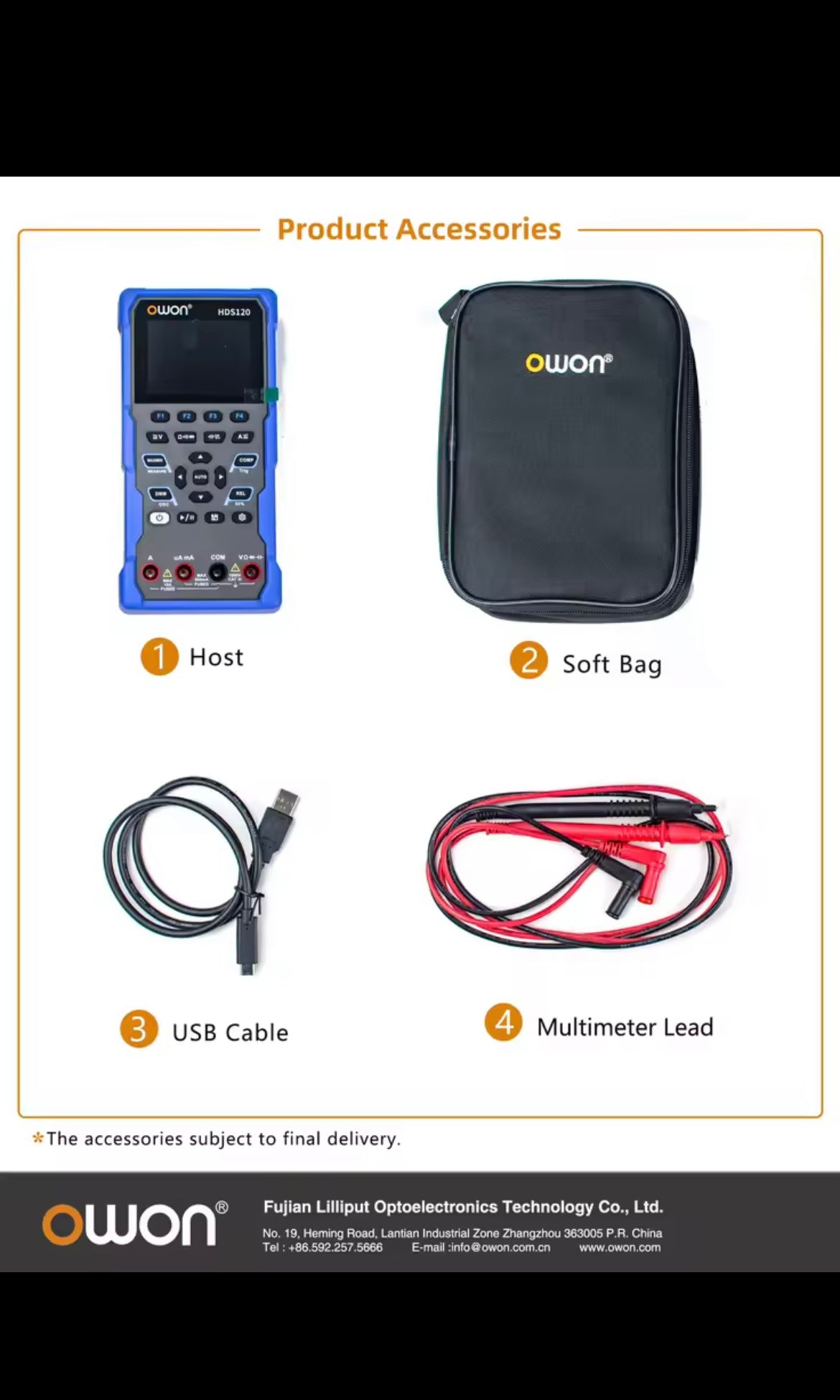

Included Accessories

• 1x HDS120 Host
• 1x Soft Bag
• 1x USB Cable
• 1x Test Leads

Ideal for electronics repair, automotive diagnostics, and industrial maintenance, the HDS120 delivers laboratory-grade accuracy in a portable, handheld format.

Weight: 0.35kg
Dimensions: 188 × 93 × 41.5mm
Battery: 3.7V 18650 Li-Po
